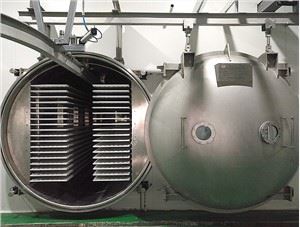

Freeze Dryer Rau Txiv Hmab Txiv Ntoo Zaub Muaj Lyophilizer
Product Description
Tag nrho sublimation thiab ziab lub sij hawm yog hais txog 12-24h los yog ntev dua, uas muaj feem xyuam rau tus nqi ntawm cov khoom nyob rau hauv txhua lub raj mis, tag nrho cov ntim, cov duab thiab specification ntawm lub khob ntim, hom khoom, lub khov - ziab nkhaus thiab kev ua haujlwm ntawm lub tshuab, thiab lwm yam.
Tom qab lub freeze-drying tiav lawm, huab cua qhuav tsis muaj menyuam yuav tsum tau ntim rau hauv lub thawv kom qhuav, thiab tom qab ntawd ntsaws thiab kaw kom sai li sai tau txhawm rau tiv thaiv kom tsis txhob rov nqus dej hauv huab cua.
Nyob rau hauv cov txheej txheem khov-drying, qhov kub thiab txias ntawm cov khoom thiab cov phaj txheej, qhov kub ntawm qhov txias ntxiab thiab lub tshuab nqus tsev kawm ntawv tau kos rau hauv ib qho nkhaus, uas yog hu ua lub khov-qhuav nkhaus. Feem ntau, qhov kub thiab txias yog qhov ordinate thiab lub sij hawm yog abscissa. Cov khoom sib txawv khov-drying sib txawv txais yuav sib txawv khov-drying nkhaus. Thaum sib txawv khov-drying nkhaus yog siv rau tib yam khoom, qhov zoo ntawm cov khoom kuj txawv. Lub freeze-drying nkhaus kuj muaj feem xyuam nrog kev ua haujlwm ntawm lub tshuab ziab khaub ncaws. Yog li ntawd, cov khoom sib txawv thiab cov tshuab ziab khaub ncaws sib txawv siv qhov sib txawv khov-drying nkhaus.
Daim ntawv teev npe
Qauv | KZG-5 | KZG-10 | KZG-20 | KZG-30 | KZG-40 |
Qhov chaw txee (m2) | 5.4 | 10.2 | 19.73 | 29.3 | 41.86 |
| Qhov ntau thiab tsawg (pcs) | 5+1 | 9+1 | 11+1 | 11+1 | 14+1 |
| Ice capture peev (KG) | 100 | 200 | 400 | 600 | 800 |
| Ultimate nqus tsev vacuum (Pa) | 10 pab | ||||
Lub cev muaj zog (KW) | 12 | 24 | 46 | 70 | 85 |
Hom cua txias | Dej txias | ||||
Cov dej txias (T / H) | 8 | 20 | 30 | 40 | 50 |
| Qhov hnyav (ton) | 7 | 10 | 17.5 | 25 | 30 |
Cov kav dej txias (mm) | DN40 | DN 50 | DN 50 | DN 65 | DN 65 |
Technical nta
1. Nyob rau hauv lub tshuab nqus tsev, cov khoom tov boiling point txo, thiab lub tshav kub hloov mus rau lub zog tsav tsheb nce, yog li ntawd lub tshav kub hloov chaw ntawm lub evaporator yuav cawm tau.
2.Qhov cua sov rau evaporation tuaj yeem yog qhov tsis tshua muaj siab los yog khib nyiab cua sov.
3. Cov evaporator kub poob qis.
4. Lub tshuab tuaj yeem ua kom tsis muaj menyuam ua ntej ziab, thiab tsis muaj impurities thaum ziab, ua raws li GMP cov cai.
5. Lub tshuab yog lub tshuab nqus tsev zoo li qub. Yog li ntawd, cov duab ntawm cov khoom qhuav yuav tsis puas.
Cov ntawv pov thawj
Cim npe nrov: freeze dryer rau txiv hmab txiv ntoo zaub muaj lyophilizer, Tuam Tshoj, Hoobkas, lwm tus neeg, manufacturers, customized, nqe, ua nyob rau hauv Suav teb
